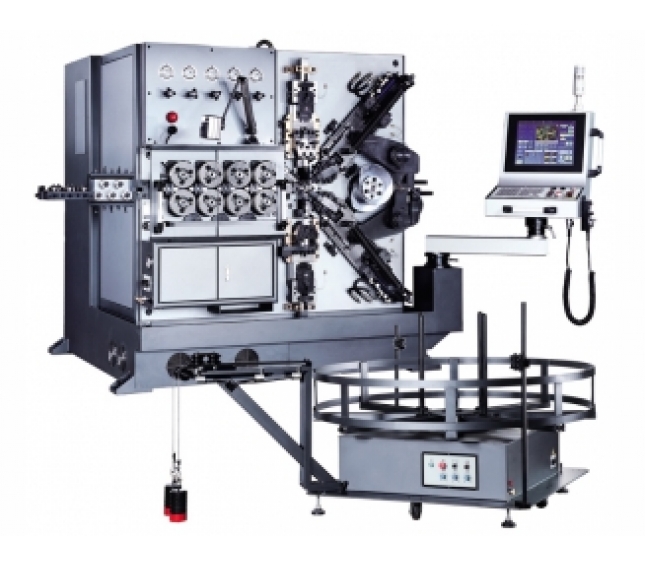

GHA-5120 (φ6.0~12.0mm)
● 5 Axis: Feed Roller, Diameter, Cutter, Wedge pitch, Push pitch
● Windows system
● Touch Screen with USB interface
● Auto programming for various types of springs
● Program with chart of OD, Pitch, Turns, Free length and Closed-end
● Support rotary cut & arborless cut
|
Model |
GHA-5120 |
|
Axes |
5 (can be upgrade into Windows system controller, optional) |
|
Wire dia. |
Ø6.0-12.0 mm |
|
Coiling direction |
Left / Right |
|
Max. spring O.D. |
Ø200 mm |
|
Feed speed |
99 m / min |
|
Power |
380V; 3P; 50/60Hz |
|
Rotating/Twisting Cutoff |
Yes |
|
Machine dimension |
336x224x230 cm |
|
Machine Weight |
13T |
The specifications are subject to change without notice.
