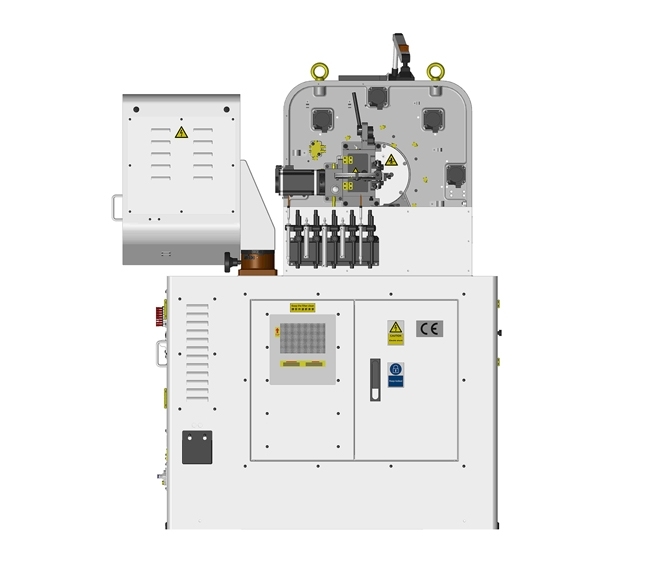

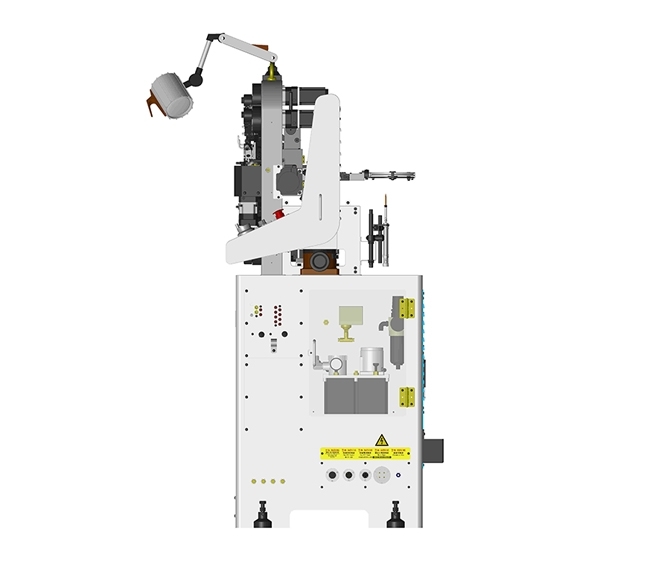

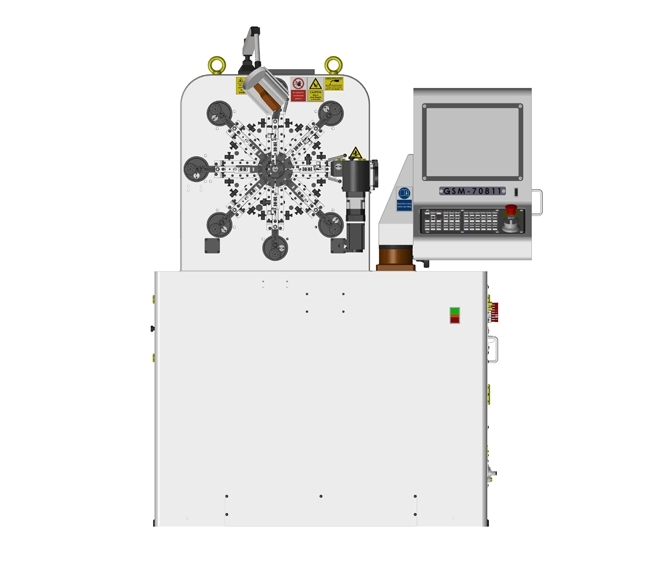

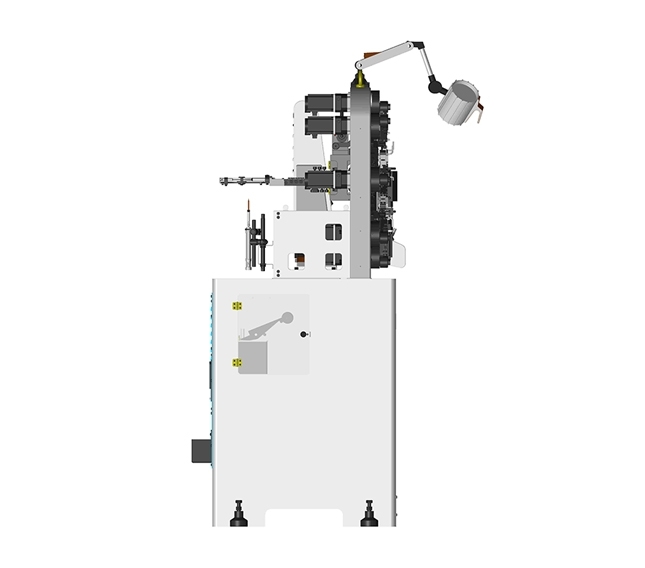

GSM-70811 (φ0.13~0.8mm)
●USB port
●TEACH edit
●Priority control
●Programmable pause timing/duration
●Programmable jogging speed
●Angle setting available for Slide, Quill and Servo Spinner
●Turns setting available for Servo Spinner
●Optional servo spinner, hook station, etc.
|
Model |
GSM-70811 |
|
|
Wire capacity |
|
0.005 - 0.032" (0.13-0.8mm) |
|
Max. Leg length |
|
0,79" (20mm) |
|
Max. OD |
|
0.79" (20mm) |
|
Slide axis x 8 |
Min. increment |
1 (2000/cycle) |
|
|
Max. speed |
90 RPM |
|
Feed axis |
Min. increment |
0.0004" (0.01mm) |
|
|
Max. feed /step |
99999.99mm |
|
|
Max. speed |
295'/min (90 M/min) |
|
Quill axis |
Min. increment |
1 (4000/cycle) |
|
Servo Spinner axis (S) |
Min. increment |
1 (36000/cycle) |
|
Computer |
Axis Number |
10 axes (Maximum upgrade to 12 axes) |
|
Memory |
Memory files |
5000 Programs |
|
Power |
Power supply |
220V, 3P, 50/60Hz, 4.5KVA |
|
Machine dimension |
1290x1590x890 mm |
|
|
Machine Weight |
620 kgs |
|
The specifications are subject to change without notice.
