Versatile Spring FormerGSM-720S13

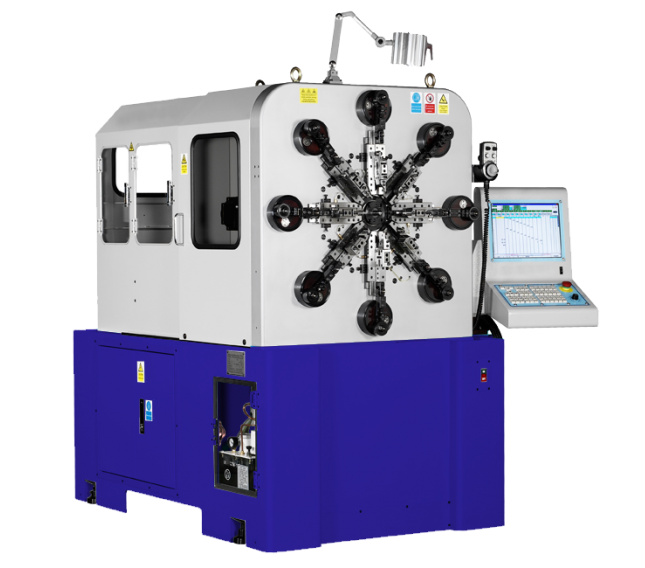

GSM-720S13 Versatile Spring Former

GSM-720S13 (φ0.2~2.3mm)
●USB port
●TEACH edit
●Priority control
●Programmable pause timing/duration
●Programmable jogging speed
●Angle setting available for Slide, Quill, Rotary Wire and Servo Spinner
●Turns setting available for Servo Spinner
●Optional servo spinner, hook station, etc.

Model

GSM-720S13

Wire capacity



0.0078 - 0.090" (0.2-2.3mm)

Max. Leg length



 2.36" (60mm)

Max. OD



 1.57" (40mm)

Slide axis x 8

Min. increment

1 (4000/cycle)



Max. speed

90 RPM

Feed axis

Min. increment

0.0004" (0.01mm)



Max. feed /step

99999.99mm



Max. speed

295'/min (90 M/min)

Quill axis

Min. increment

1 (4000/cycle)

Rotary wire axis

Min. increment

1 (3600/cycle)

Computer

Axis Number

13 axes (Maximum upgrade to 16 axes)

Memory

Memory files

5000 Programs

Power

Power supply

220V,  3P,  50/60Hz,  4.5KVA

Machine dimension

2100x1900x1700 mm

Machine Weight

1900 kgs

The specifications are subject to change without notice.
