CNC High Speed Spring CoilerGNC-8HS

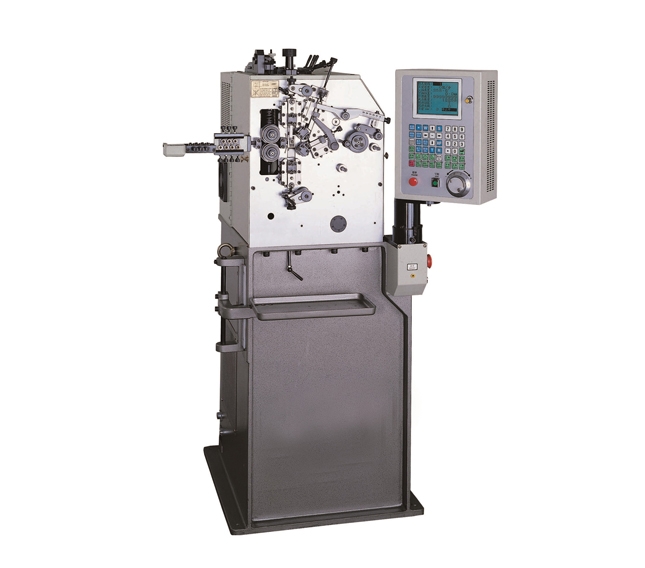

GNC-8HS CNC High Speed Spring Coiler

GNC-8HS (φ0.1~0.8mm)
● 2 axes high speed spring coiler (Feed Roller, Cam)
● Servo control MS mode
● Long wire feed at fixed cam position
● TEACH / EDIT
● Repeat function
● TEST function
● Optional spring gauge, torsion tools, etc.

Model

GNC-8HS

Wire Dia.

0.1-0.8 mm

0.005-0.031 in

Max. O.D.

20 mm

0.787 in

Display

Chinese and English

Max. production speed

600 PCS/MIN (actual production speed shall be as per spring drawing.)

Min. Value

X Axis

0.1°

Y Axis

0.01 mm

Max. Value

X Axis

359.9°



Y Axis

9999.9/999.99 mm

Max. RPM

600 RPM



Total Feed Length

Unlimited

Weights

Machine

370 kg

Machine

814 lbs

Wooden Case

510 kg

Wooden Case

1125 lbs

Dimensions

66×80×140 cm

26×31×55 in

122×117×167 cm

48×46×66 in

Power

3PH, 220V, 50/60HZ

Customer Specified Available

 The specifications are subject to change without notice.
