Model

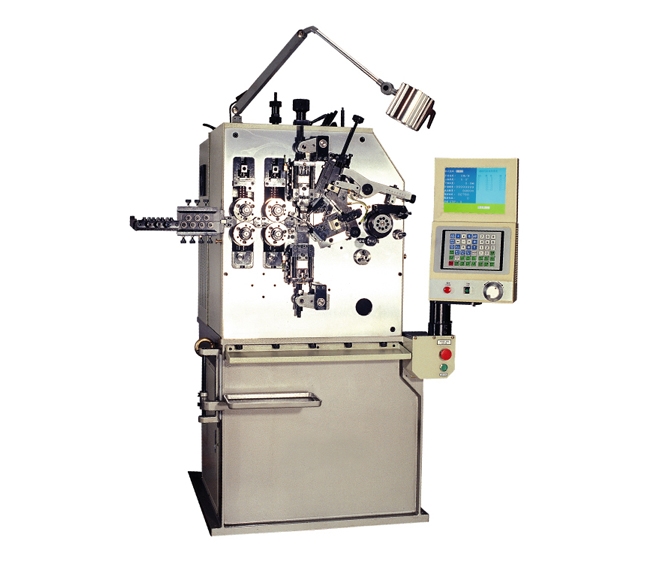

GNC-23

Wire Dia.

0.8-2.8 mm

0.031-0.102 in

Max. O.D.

50 mm

1.968 in

Display

Chinese And English

Max. Production Rate

300 PCS/MIN

Min. Value

X Axis

0.1°

Y Axis

0.1/0.01 mm

0.004/0.0004 in

Max. Value

X Axis

359.9°

Y Axis

9999.9/999.99 mm

393.696/39.369 in

Max. RPM

X Axis

300 RPM

Y Axis

400 RPM

Total Feed Length

Unlimited

Weights

Machine

750 kg

1650 lbs

Wooden Case

950 kg

2090 lbs

Dimensions

126×102×154 cm

40×40×60 in

200×130×170 cm

78×51×67 in

Power

3PH 220V 60HZ

Customer Specified Available
