● Standard feed length : 4000 mm, programmable for work pieces of up to 4400 mm (depending on customer work piece shape requirements )
● Servo axis number : 7-axis, machining accuracy : ±0.05°
● Self-diagnostic function, warning alarm for irregularities.
● Power loss safeguard & dual hard disk synchronized data backup to prevent data loss.

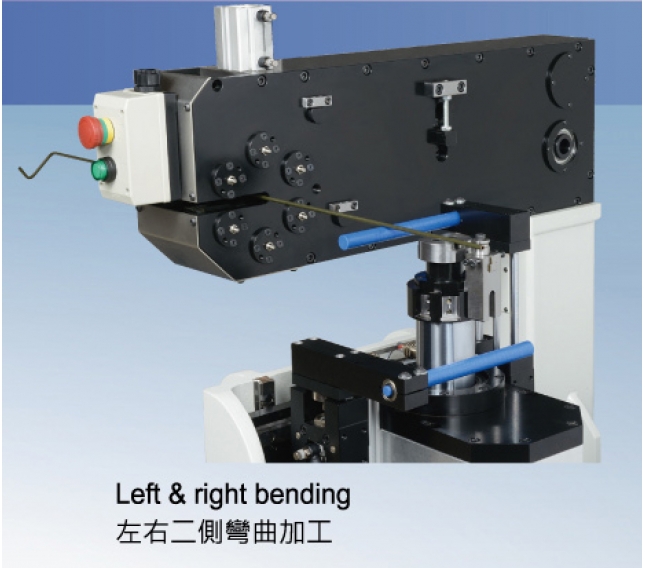

● Reversible mode, left & right bending.

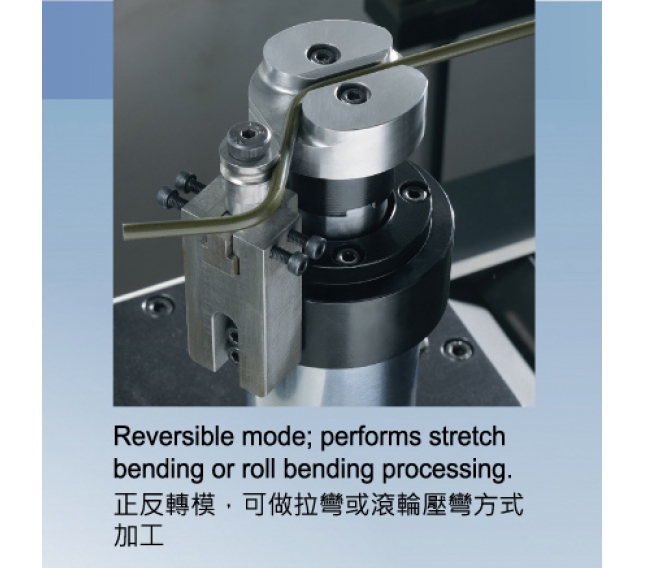

● Performs stretch bending or roll bending processing.

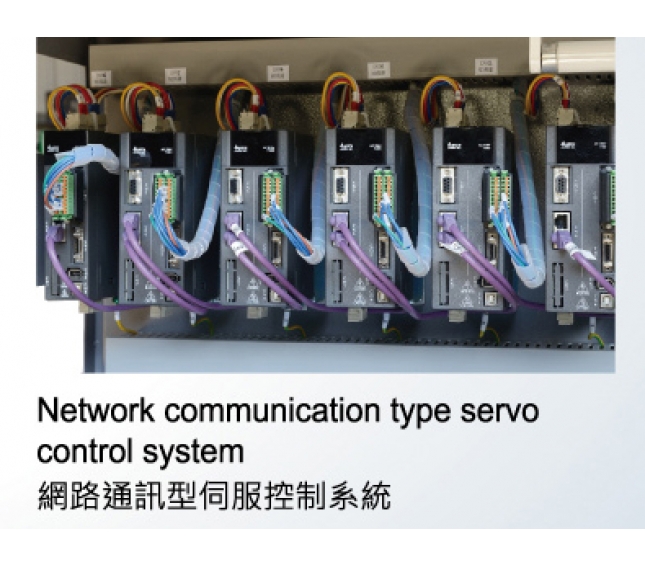

● Servo driven, simple tube processing procedure.
● Touch screen controls, clean operating environment, safe simple, multi-language interface.

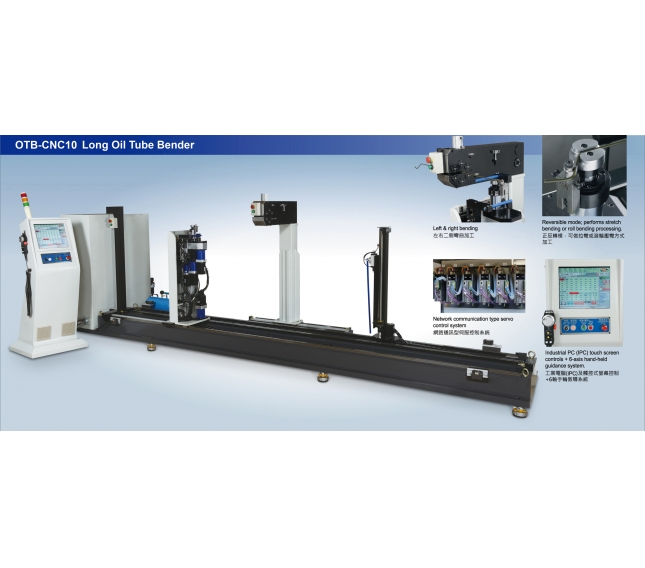

● Specialized CNC bending machine designed for small diameter tubing, long pipe fittings, oil tubing & a variety of complex work pieces.

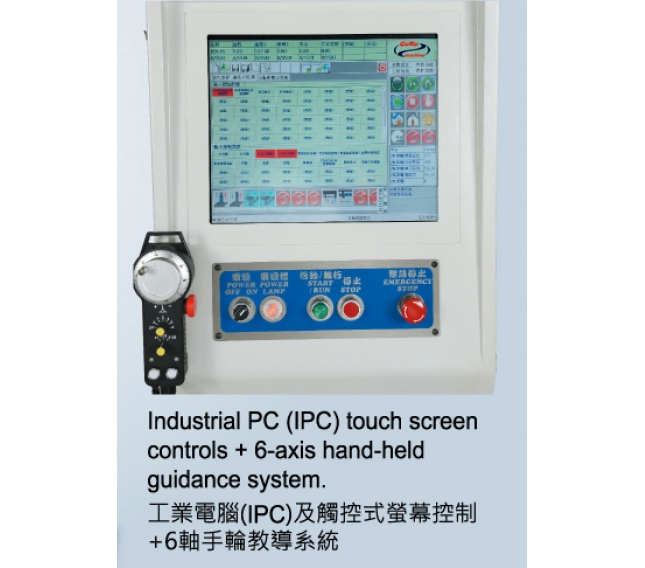

● Industrial PC (IPC), touch-screen controls, large memory capacity. Network data transmission & online troubleshooting functions.
● Fully automated long tube bending process.
Applications :
Automobile, motorcycle, brake, fuel tubing, water cooling pipes, air conditioning pipes, car seats, furniture, kitchenware, bathroom fittings, artworks.
|
Model |
OTB-CNC10 |
|
|
Max Tube OD. |
Low Carbon Steel |
Ø8 mm x t1.0 mm (can be customized as per customer`s demand) |
|
Max Feed Length |
4000 mm (can be customized as per customer`s demand) |
|
|
Max Bend Angle |
±180∘ |
|
|
Max Rotation Angle |
Unlimited |
|
|
Max Bend Radius |
R40 mm |
|
|
Max Number of Bends |
200 |
|
|
Sleeve Bend Speed |
900 rpm |
|
|
Feed Speed |
900 mm/sec |
|
|
Rotation Speed |
600∘/sec |
|
|
Mandrel Bend Speed |
900 rpm |
|
|
Shift Speed |
400 mm/sec |
|
|
Support Y Speed |
900 mm/sec |
|
|
Support Z Speed |
900 mm/sec |
|
|
Precision |
Sleeve Bend Angle |
±0.05∘ |
|
Feeding |
±0.05 mm |
|
|
Rotation |
±0.05∘ |
|
|
Mandrel Bend |
±0.05∘ |
|
|
Shift |
±0.05 mm |
|
|
Support Y |
±0.05 mm |
|
|
Support Z |
±0.05 mm |
|
|
Collet System |
Jaw Chuck |
|
|
CNC Controller |
PC-BASE Controller |
|
|
Program Input |
Input using touch screen & hand-held control unit |
|
|
Memory Storage Capacity |
999,999 files |
|
|
Axis Control |
Industry Servo Control Card |
|
|
Drive |
Servo |
|
|
Electrical Capacity |
Three-Phase 380V 15KVA |
|
|
Size: L x W x H |
5300 x 1100 x 1800 mm |
|
|
Net Weight |
3500 kg |
|
The specifications are subject to change without notice.
