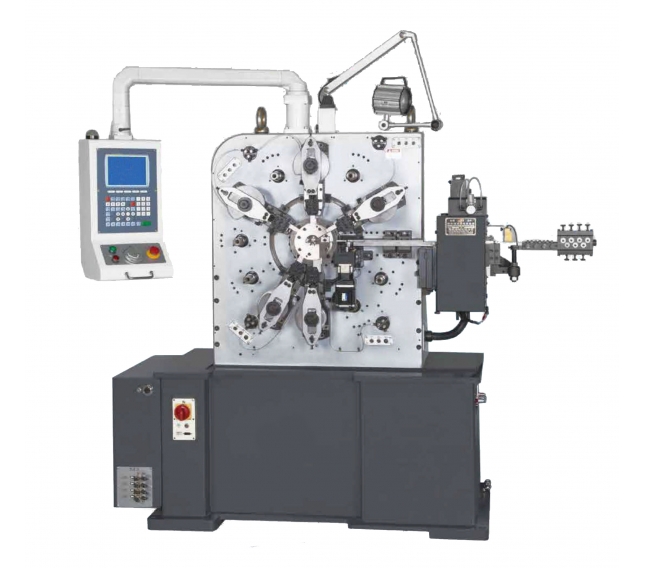

GNC-36TW

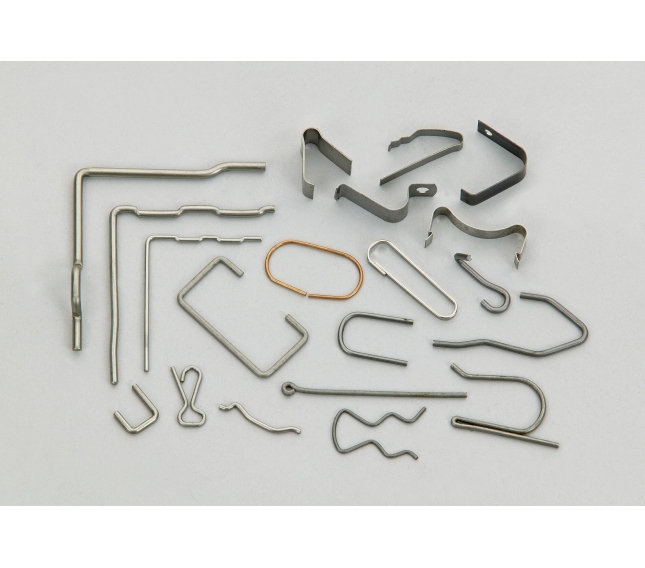

● Ideal for wire and strip
● Flexible slide position
● Fast production rate
● Precise and stable
● Continuos feeding and bending
● Auto lubrication
● Safety detection for material disconnection and jam
● Rear cam unit
|
Model |
|
GNC-36TW |
|
Wire Capacity |
|
Ø 0.6-2.5 mm |
|
Strip Capacity |
|
0.3-1.2x30 mm |
|
Hardness of Wire (Carbon) |
|
80C |
|
Number of axis |
|
2 |
|
Max. Feed length |
|
Unlimited |
|
Max. Production rate |
|
200 RPM |
|
Slide Stroke |
|
37mm |
|
Slide Capacity |
|
1.5T |
|
Motor capacity |
Feed |
0.75 kw |
|
Form |
4.1 kw |
|
|
Spinner (optional) |
0.4 kw |
|
|
Dimension |
|
210x100x180 cm |
|
Weight |
|
1200 kgs |
The specifications are subject to change without notice.
