產品介紹
PRODUCTS
PRODUCTS

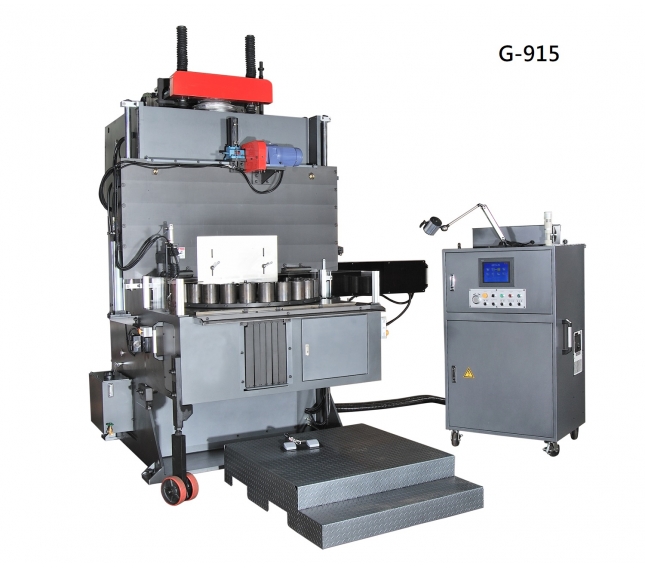

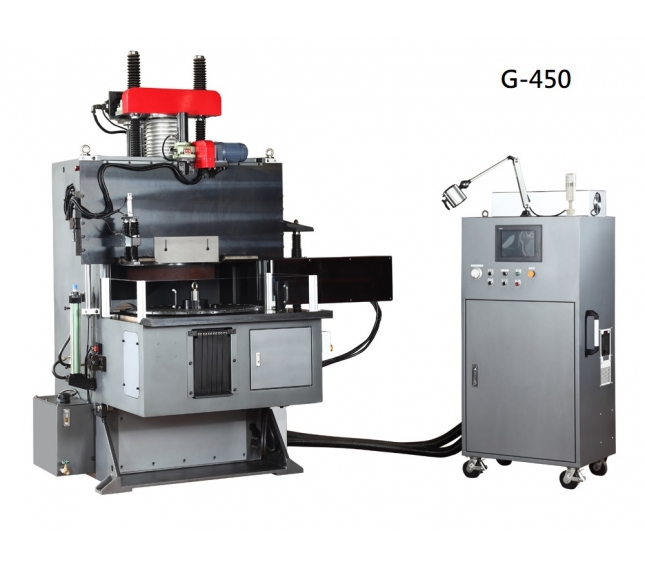

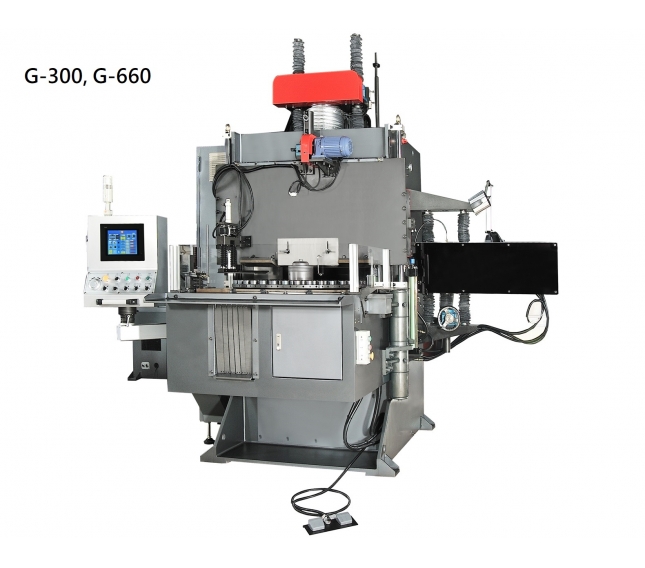

G-300S、G-300、G-450、G-660、G-915
●Down feed grinder
●Horizontal stone conversion
●Air cooling
●Dry grinding
●Single loading plate
●Optional custom made grinder, dust collector, etc.
|
Model |
G-300S |
G-300 |
G-450 |
G-660 |
G-915 |
|
|
Number of axis |
1 |
2 |
2 |
2 |
2 |
|
|
Wire Capacity |
Ø0.5- Ø 3.0mm |
Ø0.5- Ø 3.0mm |
Ø2.0- Ø 8.0mm |
Ø4.0- Ø 12.0mm |
Ø6.0- Ø 20.0mm |
|
|
Max. O.D. |
Ø35mm |
Ø35mm |
Ø60mm |
Ø100mm |
Ø200mm |
|
|
Spring Length (before grinding) |
10 - 200mm |
10 - 200mm |
20 - 300mm |
30 - 320mm |
50 – 420mm |
|
|
Stone Dimension |
O.D. |
Ø305mm |
Ø305mm |
Ø450mm |
Ø660mm |
Ø915mm |
|
I.D. |
Ø150mm |
Ø125mm |
Ø100mm |
Ø150mm |
Ø200mm |
|
|
Thickness |
65mm |
65mm |
65mm |
90mm |
120mm |
|
|
Stone Number |
2 |
2 |
2 |
2 |
2 |
|
|
Machine Occupied Area |
L |
2000mm |
2000mm |
2200mm |
2840mm |
3200mm |
|
W |
1900mm |
1900mm |
2200mm |
2500mm |
2950mm |
|
|
H |
2330mm |
2330mm |
2600mm |
2900mm |
3650mm |
|
|
Machine Weight |
3000kgs |
3000kgs |
5200kgs |
6000kgs |
8500kgs |
|
|
Power |
220V, 3P |
220V, 3P |
220V, 3P |
220V, 3P |
220V, 3P |
|
