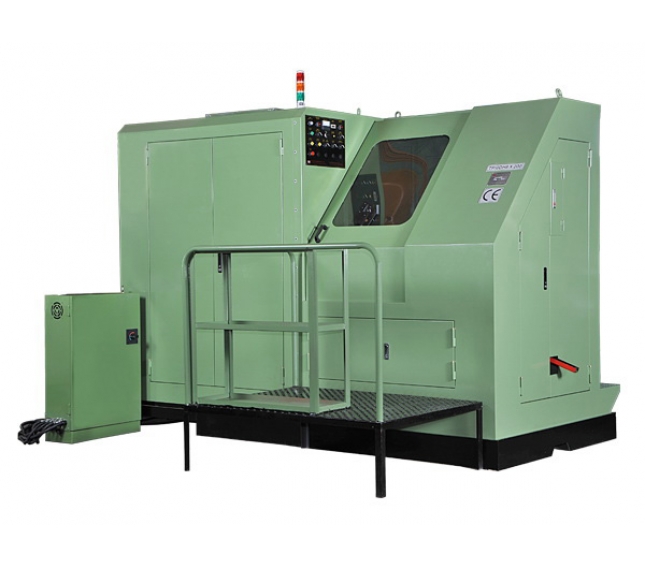

Special Mold Heading Machine (CE Type)
●Material-saving
●Low cost molds
●Shorten processing time

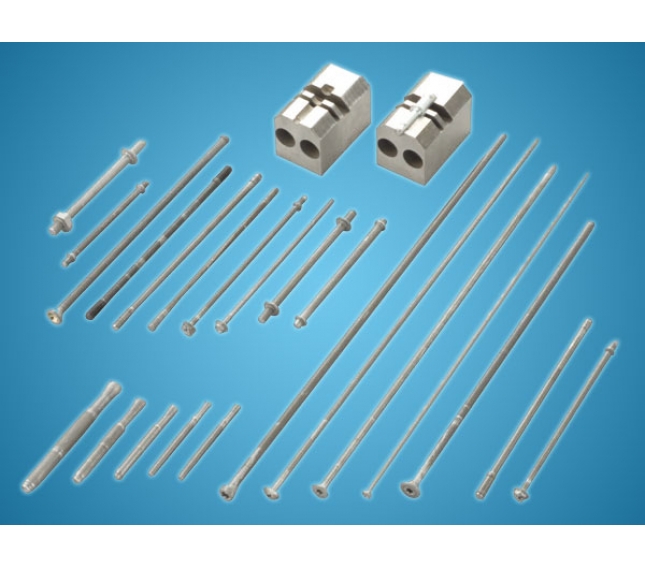

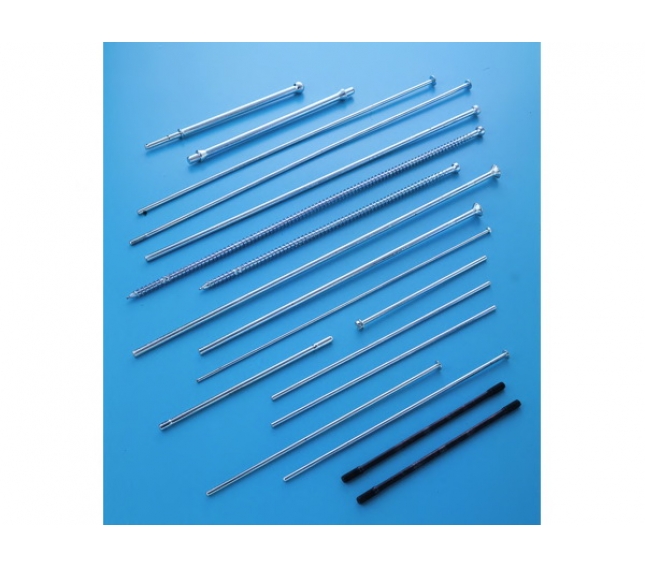

●Products with infinitely lengthened possibility
|
Forging Load |
35000 KGS |
|
Max. Wire Diameter |
6~8 |
|
Max. Blank Length |
25~250 mm |
|
Punch Hole |
42 mm |
|
Machine RPM/Output |
20~50 pcs/min |
|
Feeding Mechanism |
Feeding Vibrator (Single Direction, A, B, or C type depends on actual products.) |
|
Auto Feeding Length |
25~150 mm |
|
Main Drive Motor |
7.5 HP |
|
Machine Dimension(mm) |
3200 x 1510 x 1800 |
|
Machine Weight |
6800 KGS |
The specifications are subject to change without notice.
