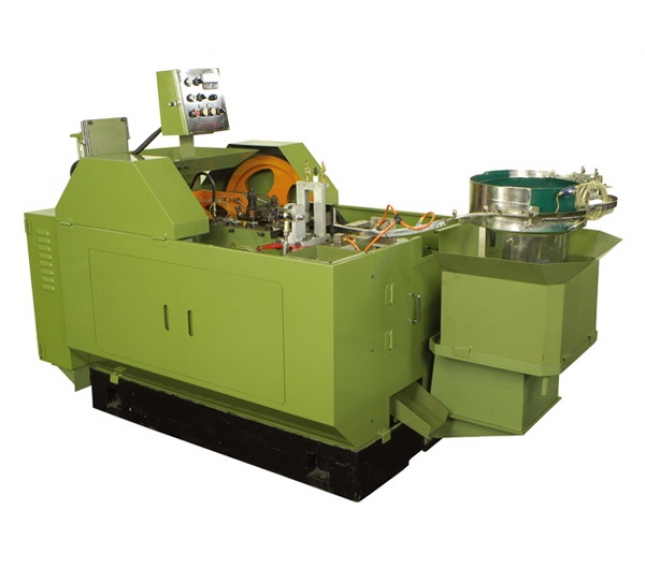

Special Mold Heading Machine (Feeding Vibrator -C Type)
●Material-saving
●Low cost molds
●Shorten processing time

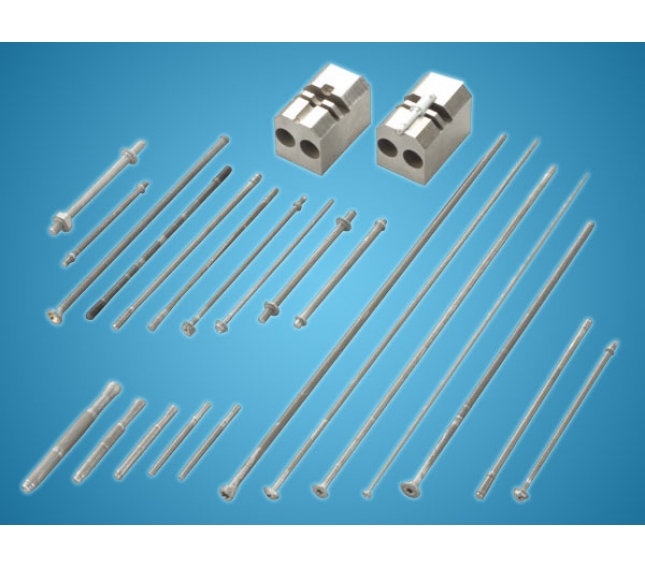

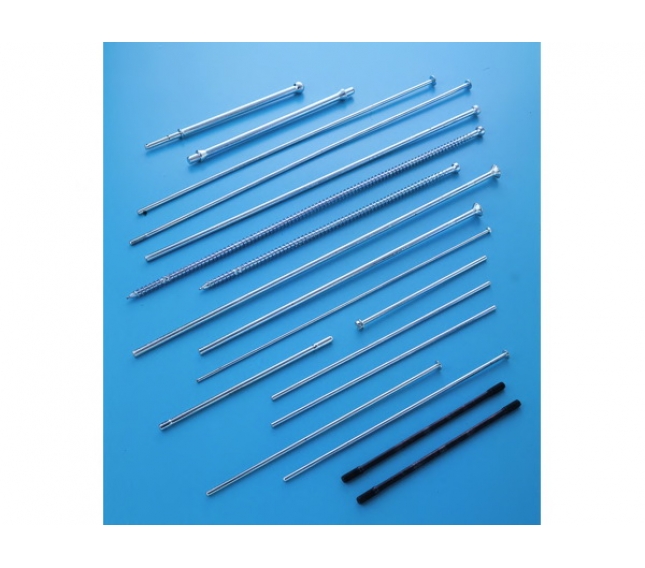

●Products with infinitely lengthened possibility
|
Forging Load |
20000 KGS |
|
Max. Wire Diameter |
3~5 |
|
Max. Blank Length |
25~75 mm |
|
Punch Hole |
31 mm |
|
Machine RPM/Output |
50~90 pcs/min |
|
Feeding Mechanism |
Feeding Vibrator (C Type) |
|
Auto Feeding Length |
25~75 mm |
|
Main Drive Motor |
3 HP |
|
Machine Dimension(mm) |
1700x1050x1000 |
|
Machine Weight |
2100 KGS |
The specifications are subject to change without notice.
