CNC Wire BenderWB series (2D)

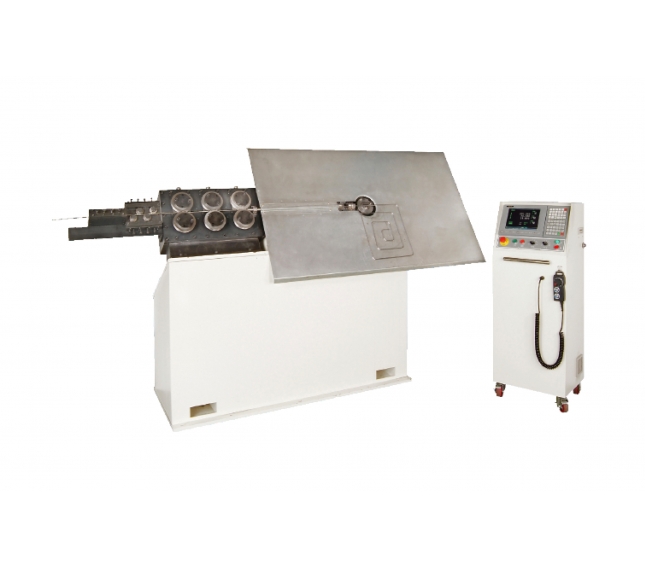

WB series (2D) CNC Wire Bender

Model

WB-380 (2D)

Wire Capacity

3.0-8.0mm for low carbon steel 1006

3.0-8.0mm for high carbon steel wire

Axes

Standard 3 axes (Max 4 axes)

Max. Working range

700mm * 700mm

Feeding

Motor

Servo Motor

Feed roller

3 sets (6 pcs)

Max. Feeding speed

70M / min

Max. Value

+/- 99999999

Spinner

Motor

Servo Motor

Max. Rotation Angle

360°

Bending Radius

3.0mm – 10.0mm

Computer

G code industry computer

Power

220V , 3 Phases , 7.5KW

Weight

1100 KGS

Dimensions

265*80*160 cm

The specifications are subject to change without notice.
